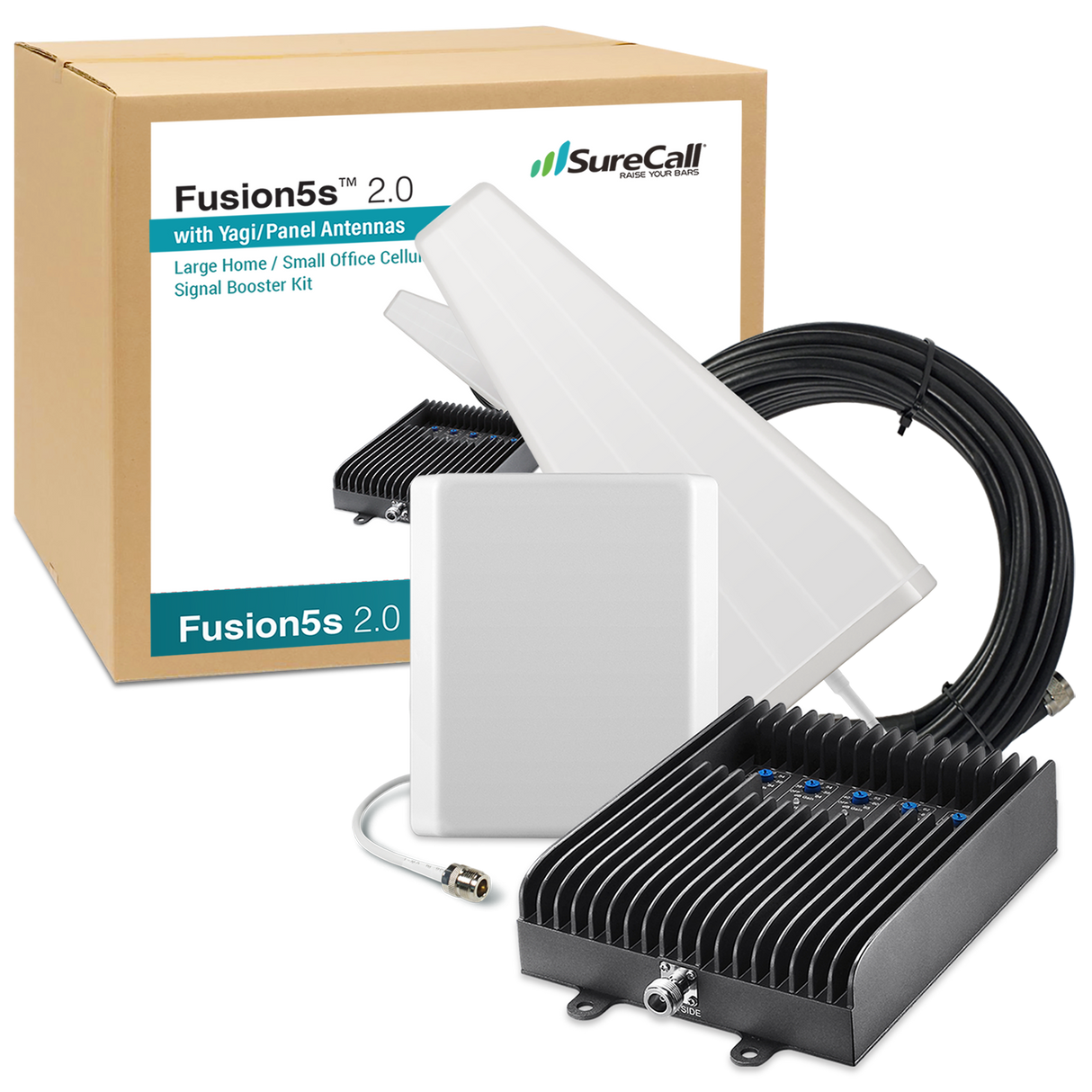

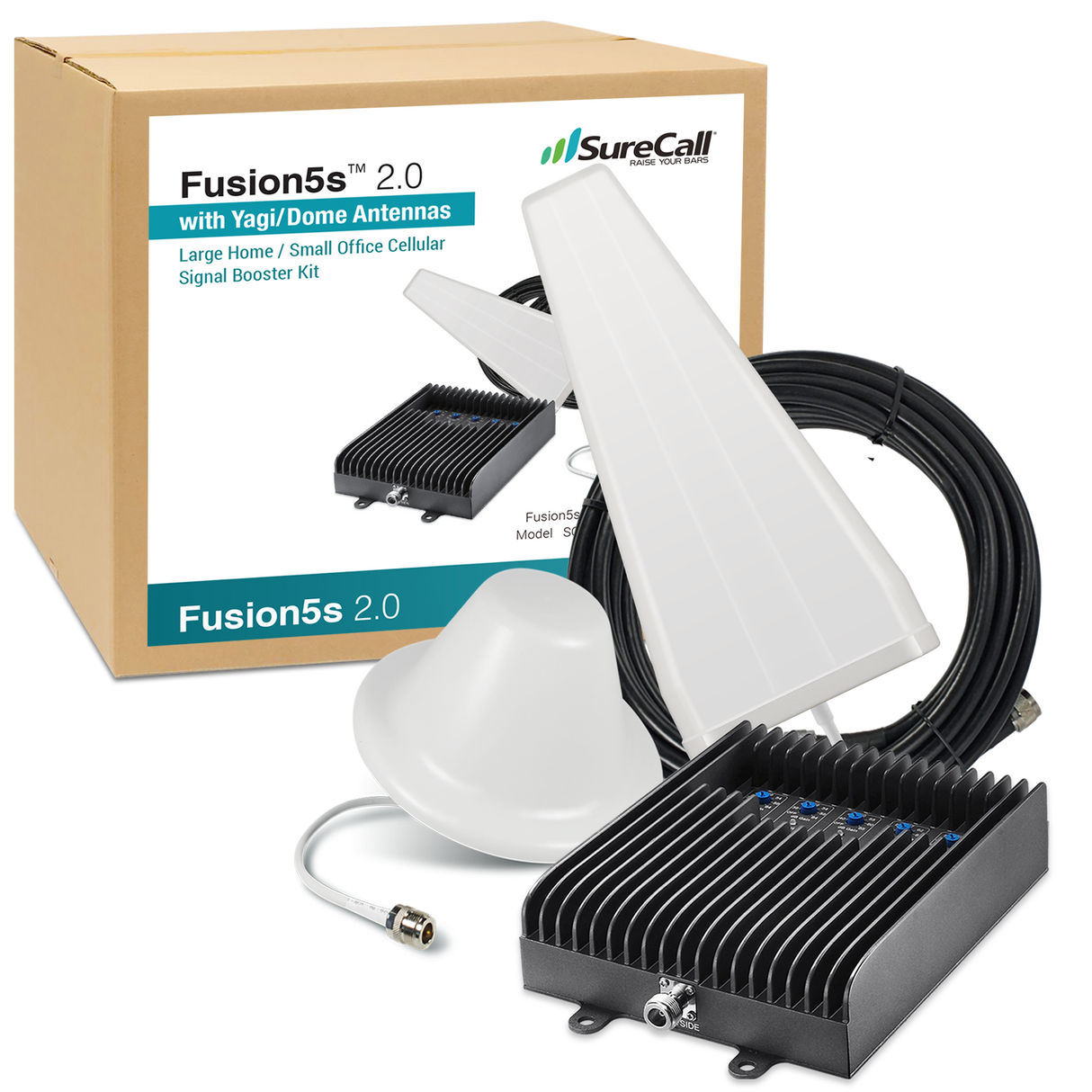

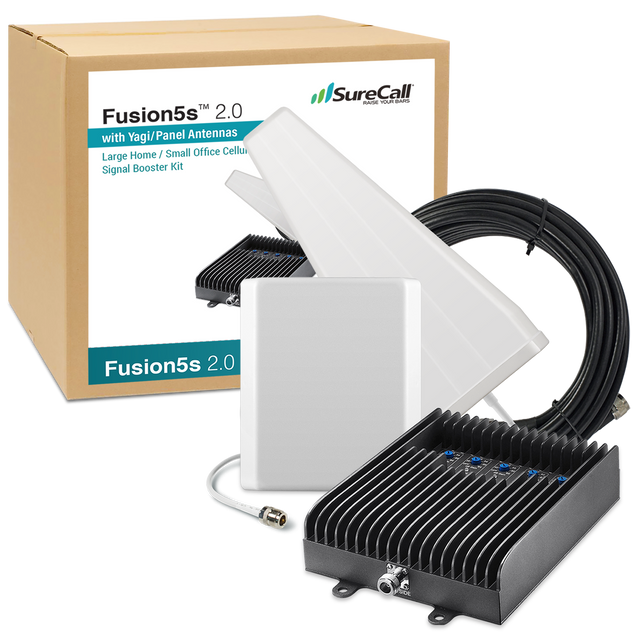

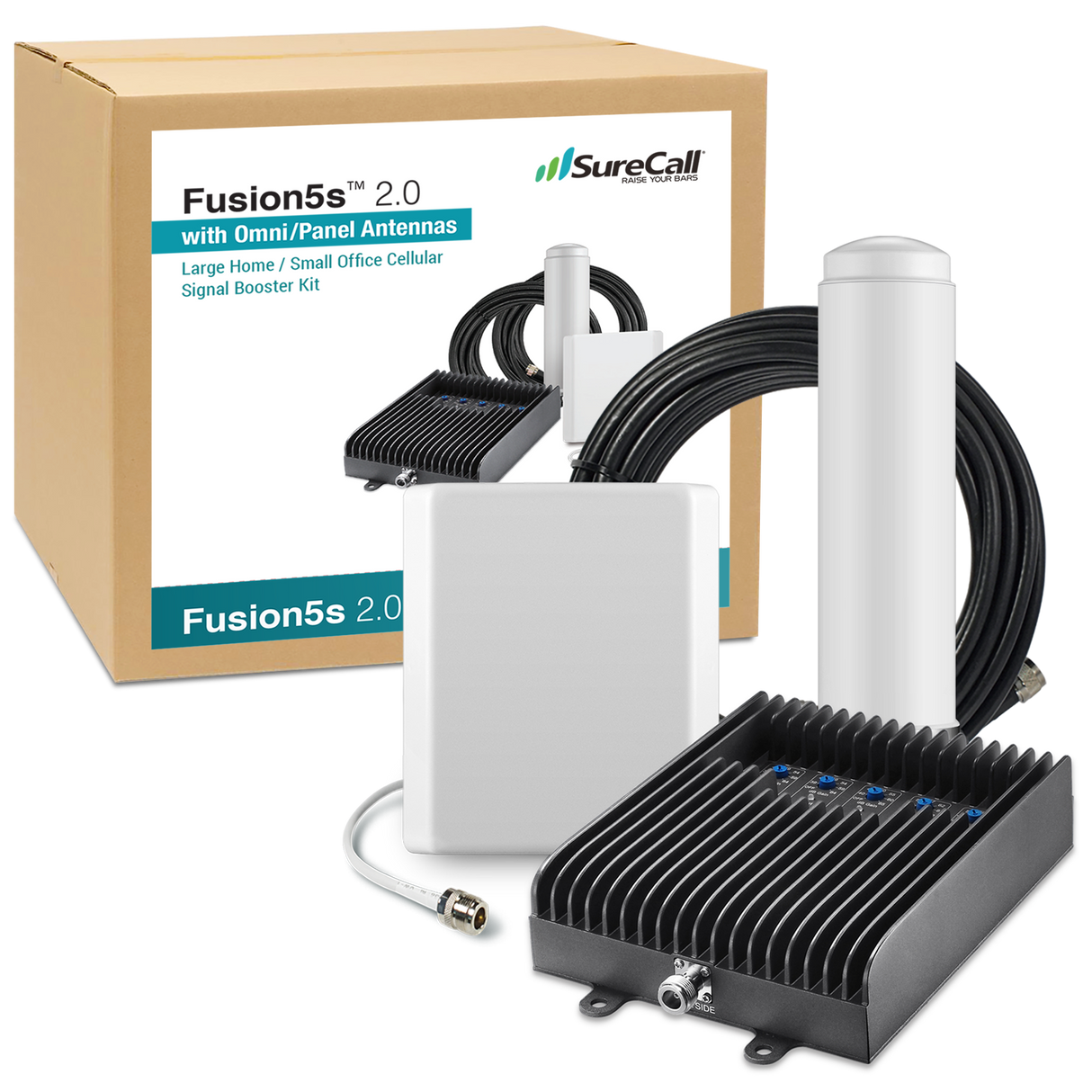

Fusion5s 2.0 Signal Booster Kit

The SureCall Fusion5s is one of our most popular and versatile signal booster kits. With a choice of two different outside and inside antennas, the Fusion5s can be configured to solve most any situation. If you need a solution for a medium to large home or business, then the SureCall Fusion5s Signal Booster is going to be a great option for you.

Outside Antenna Options

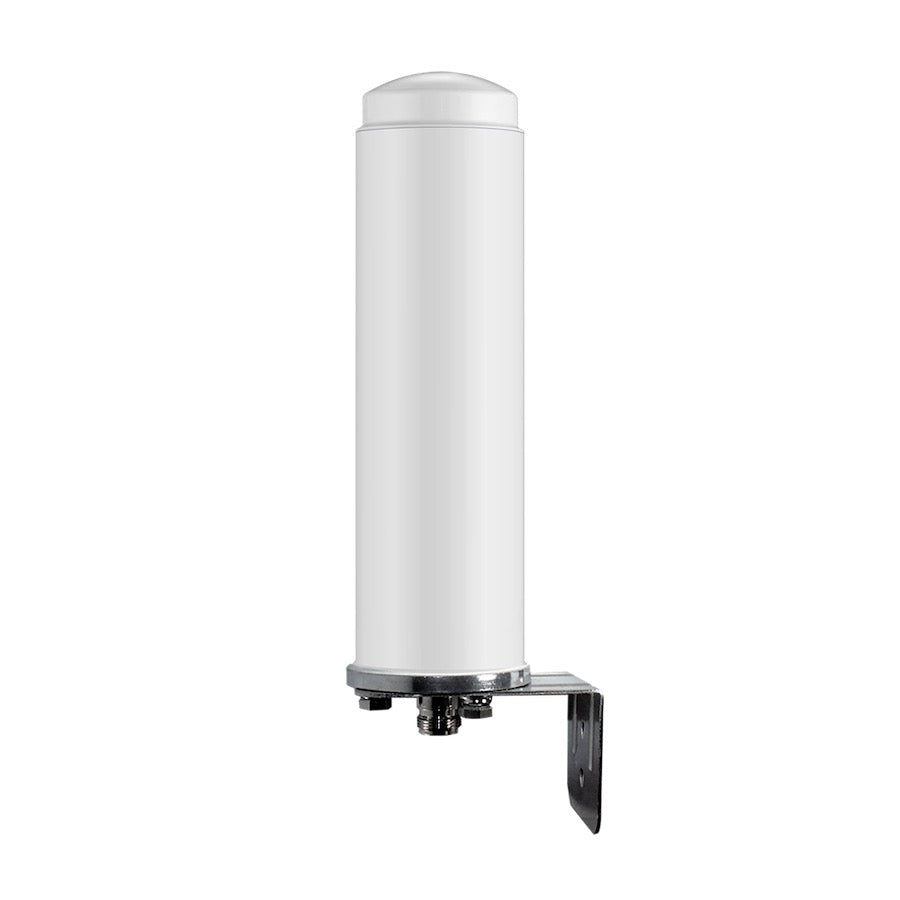

• Omni Outside Antenna: This antenna has 4 dB of gain and will send and receive in all directions, so it should work for all carriers, irrespective of the tower location, but omni antennas are not as powerful as directional antennas, so you'll generally get less coverage inside with one. We only recommend omni antennas for situations where you have a moderate to strong (3-bars or more) existing outside signal.

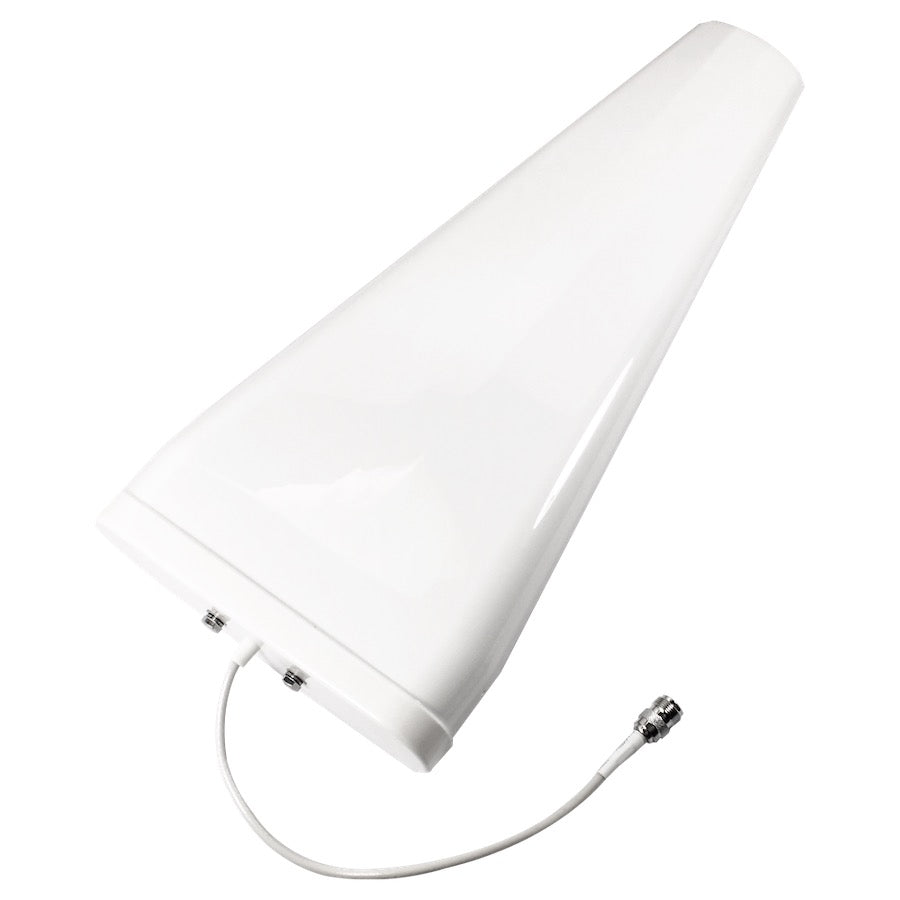

• Yagi Outside Antenna: This antenna has 10 dB of gain and must be aimed and can cover about 75 degrees of the horizon in one direction. Since a directional antenna can only cover a portion of the horizon, you may only be able to cover the carrier(s) with towers in the direction that the yagi antenna is pointing. The advantage is that because they are aimed, they're much more powerful so you'll get more coverage area inside of the building with a directional antenna.

Inside Antenna Options

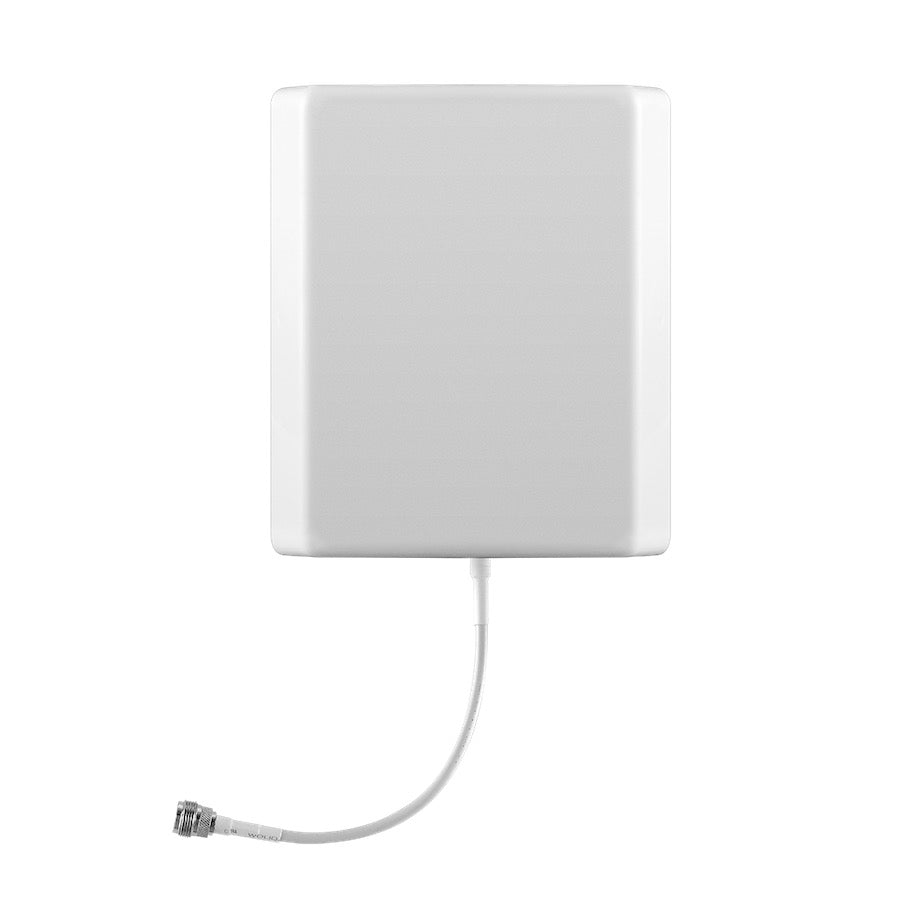

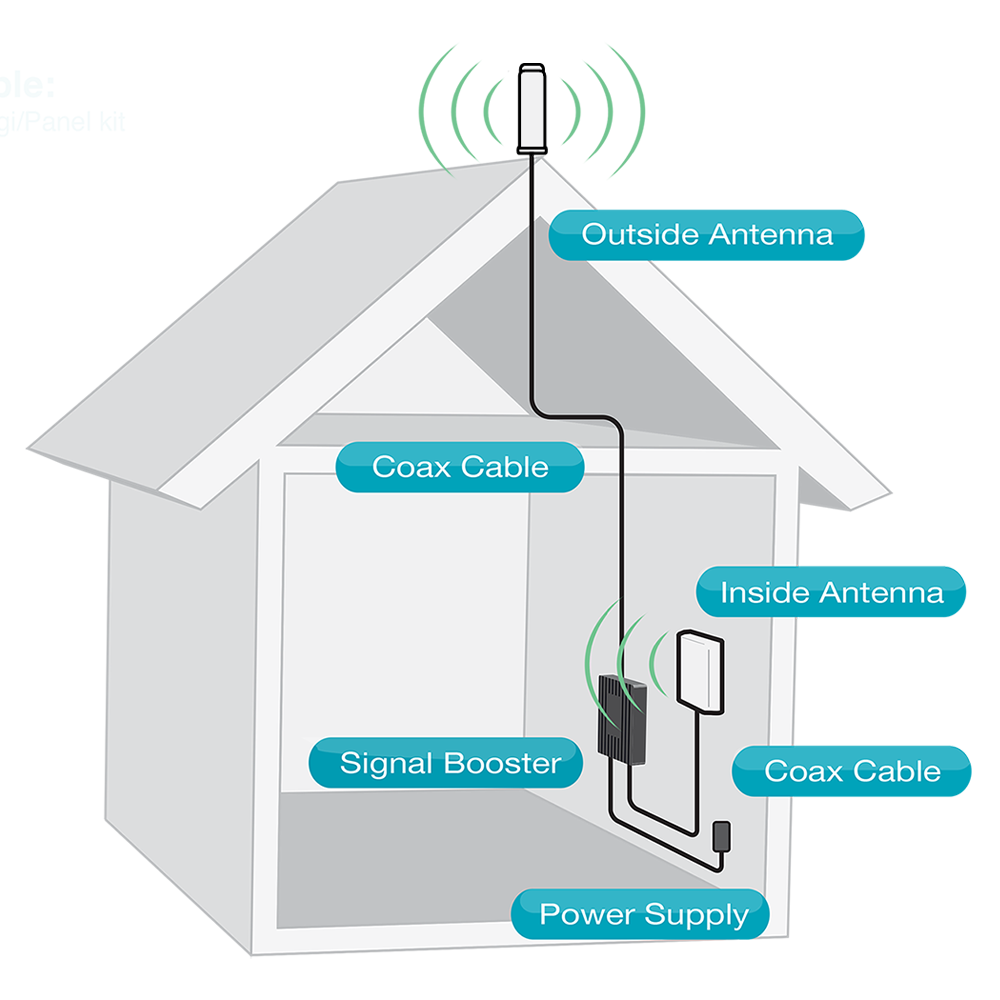

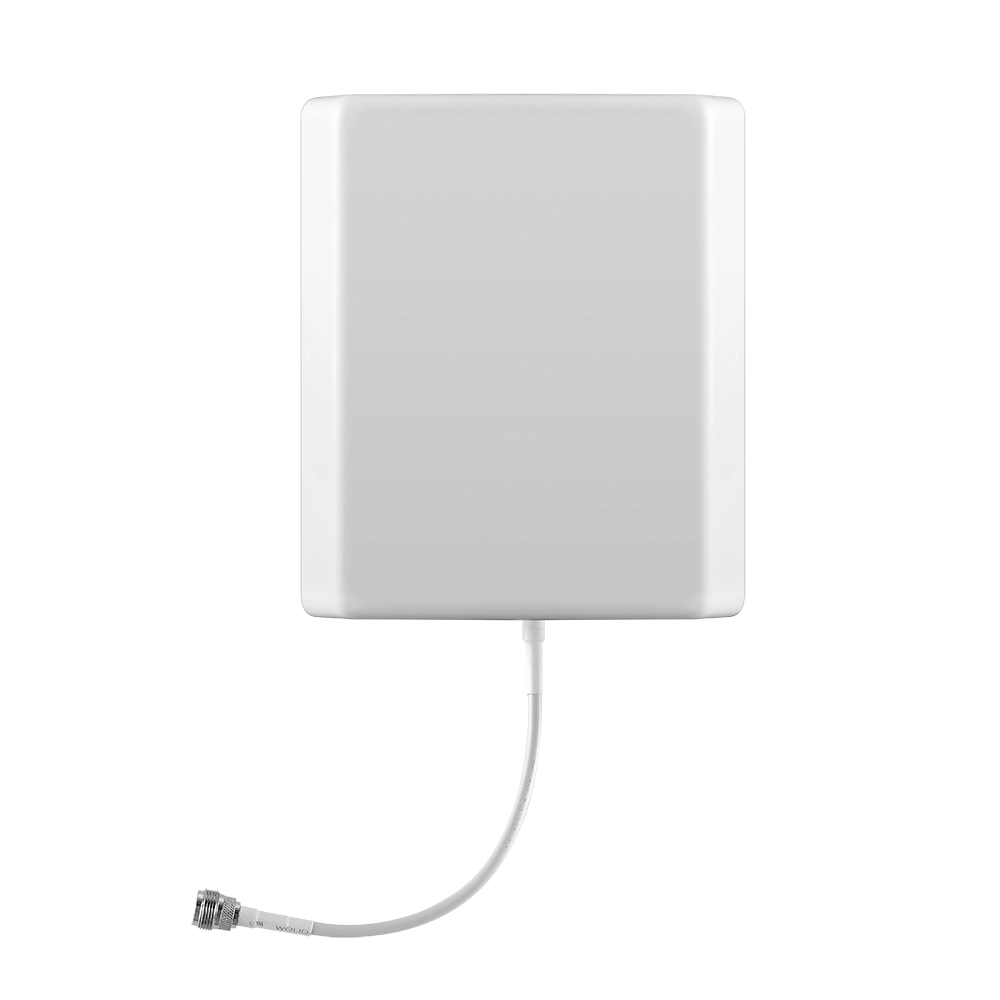

• Panel Inside Antenna: This antenna has 10 dB of gain and is generally mounted on the ceiling aimed downwards in the center of the space that needs boosted signal, but can also be laid face down on the floor of an attic or space above the ceiling, again in the center of the space that needs boosted signal, and it will broadcast boosted signal through the floor to the space below. Finally, panel antennas can be mounted on a wall and broadcast boosted signal across a space.

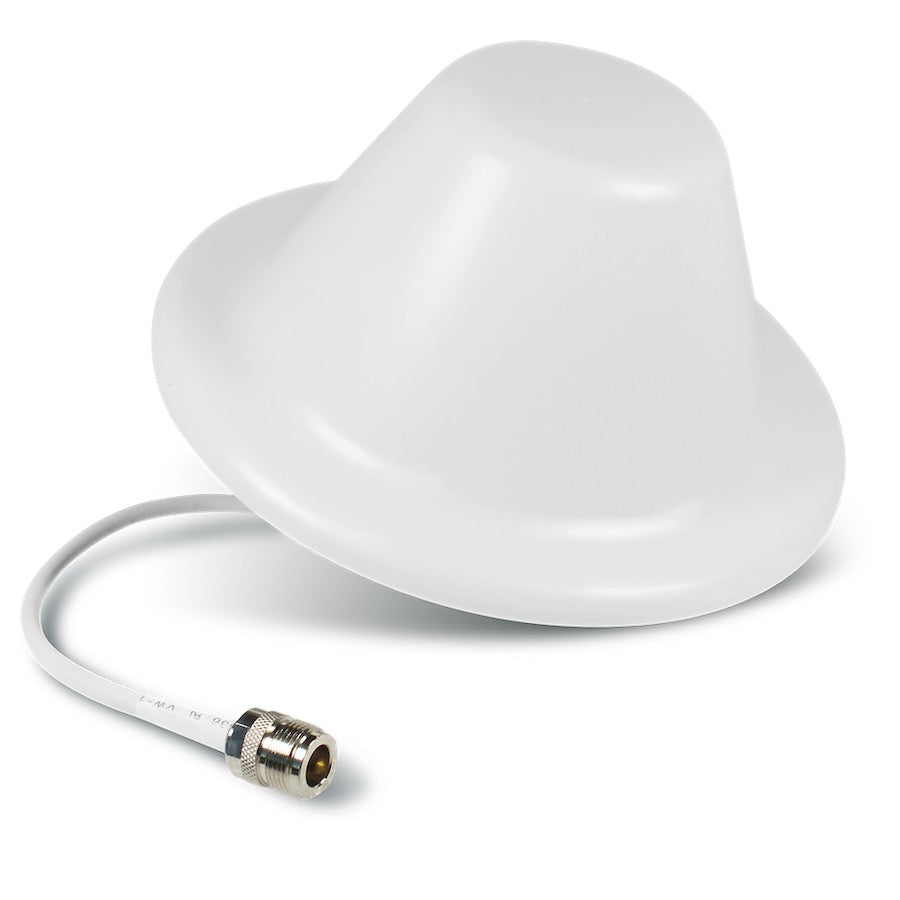

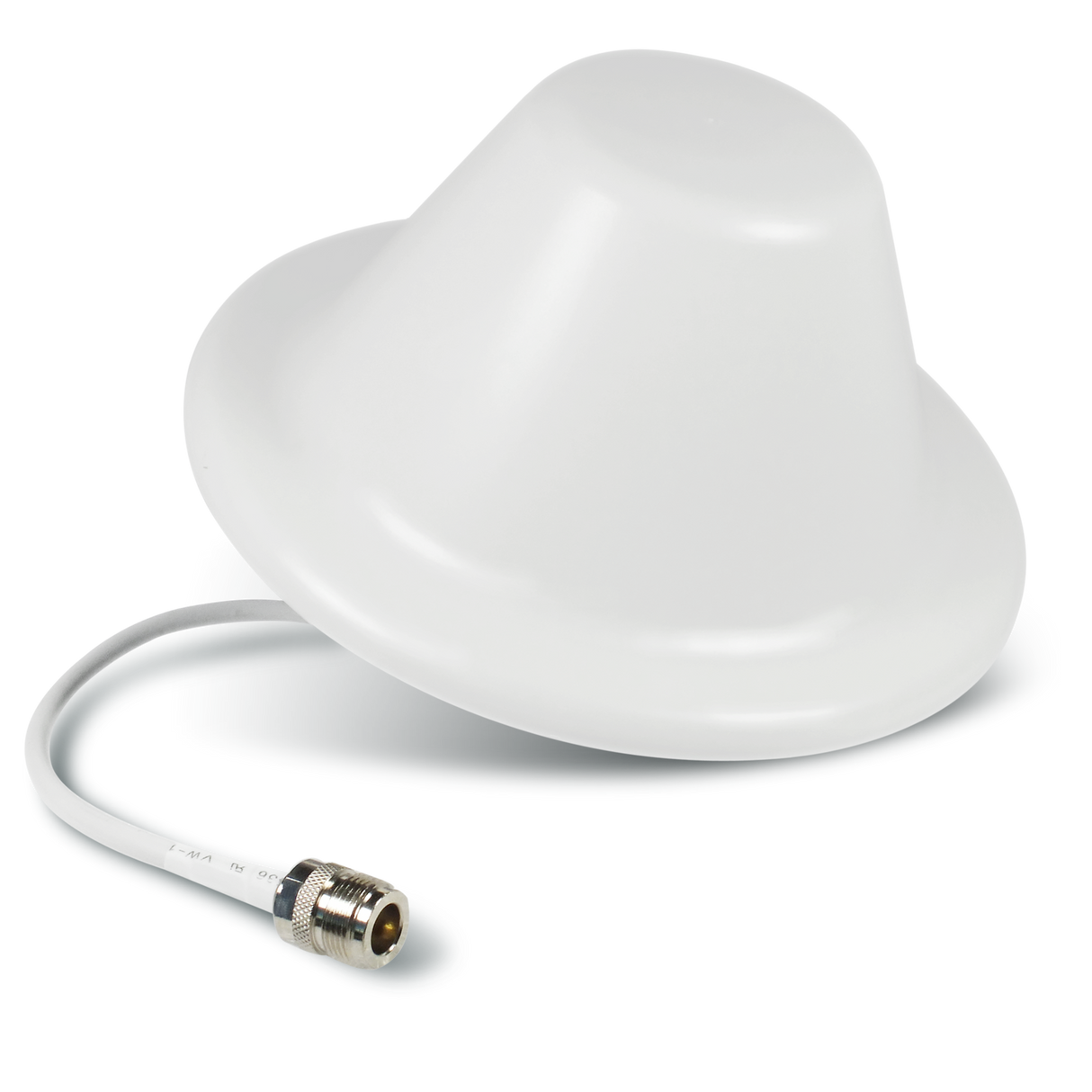

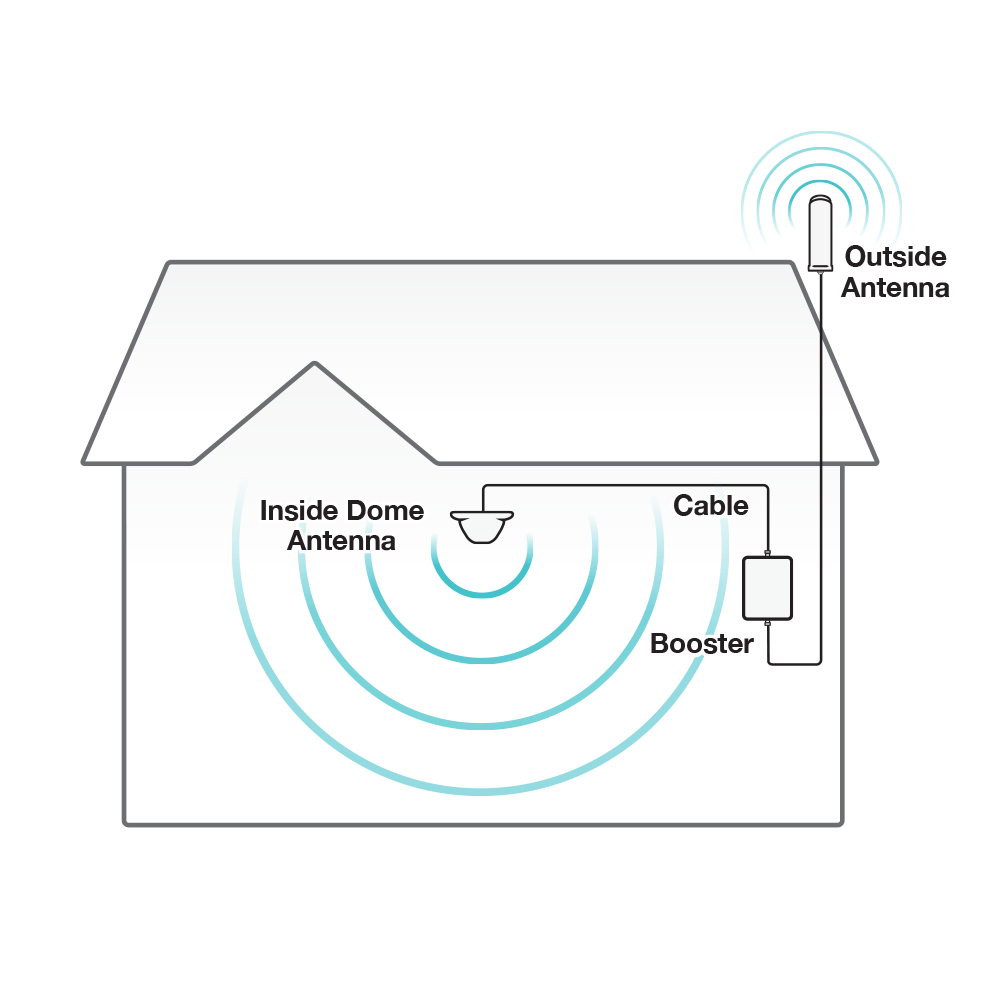

• Dome Inside Antenna: This antenna has 5 dB of gain and can only be mounted to a ceiling and you must have access to the backside of the ceiling in order to run a cable to it, so it's best for drop ceilings or locations where there is an attic above the ceiling. Dome antennas work best for single floors but can possibly cover multiple floors depending on the floor construction.

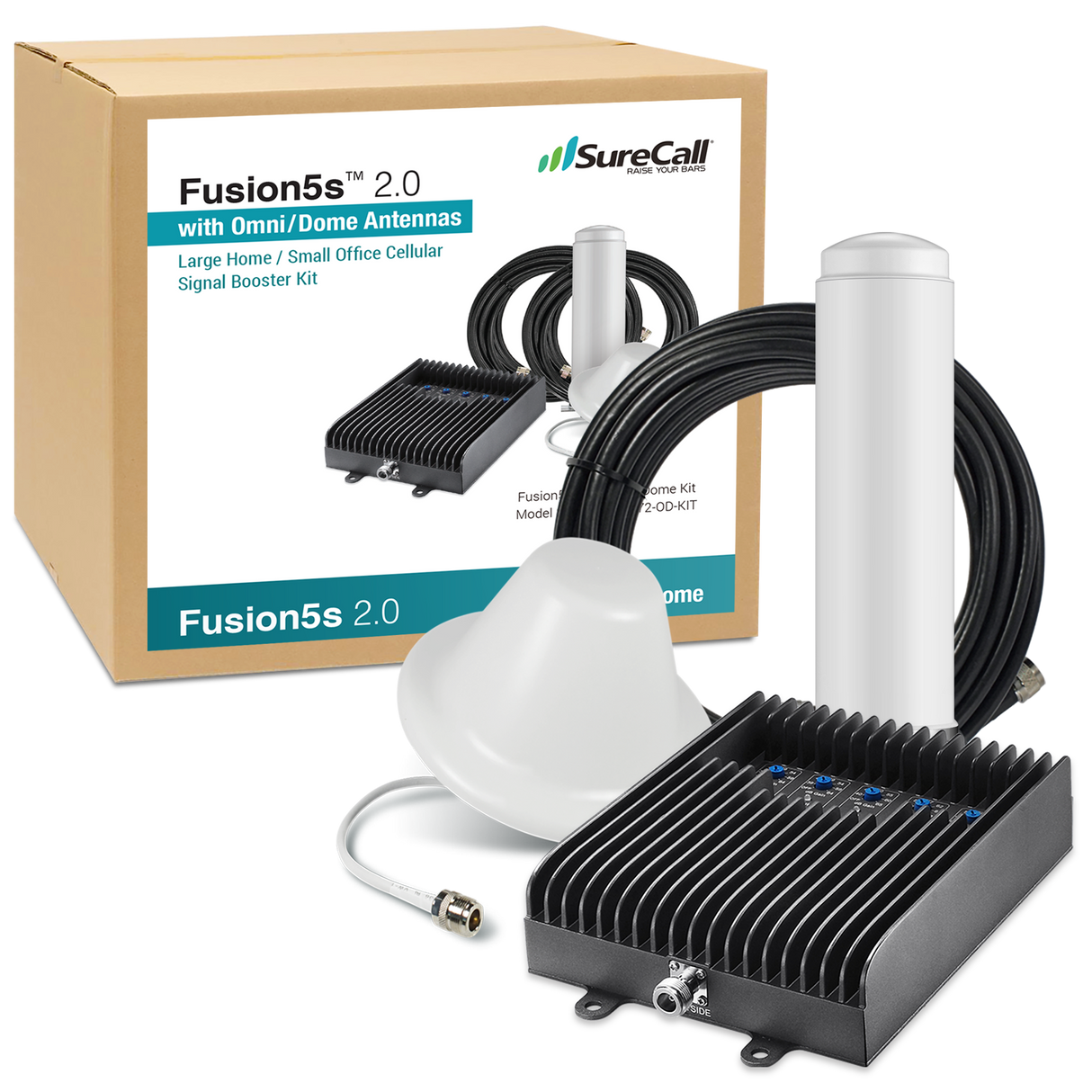

Kit Includes

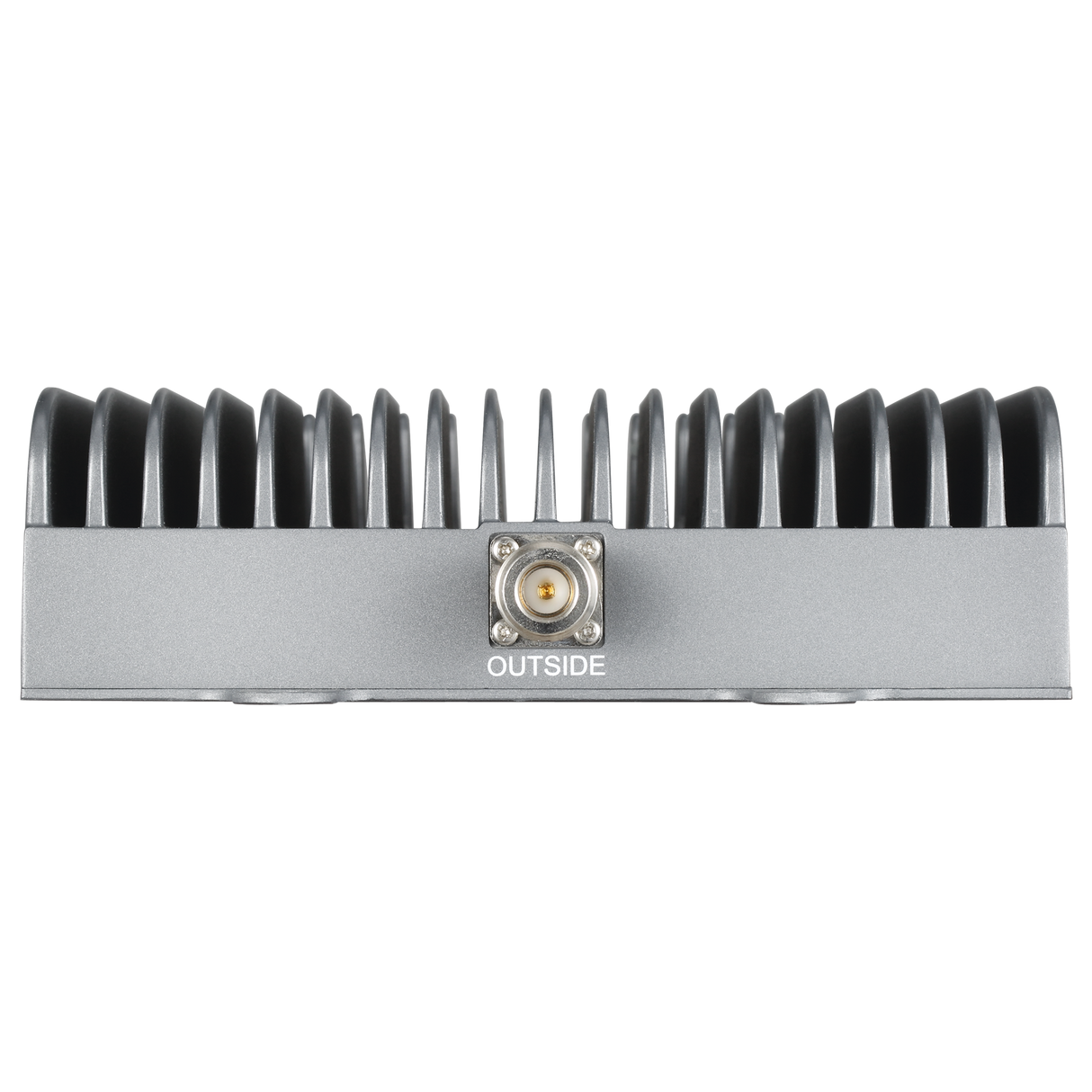

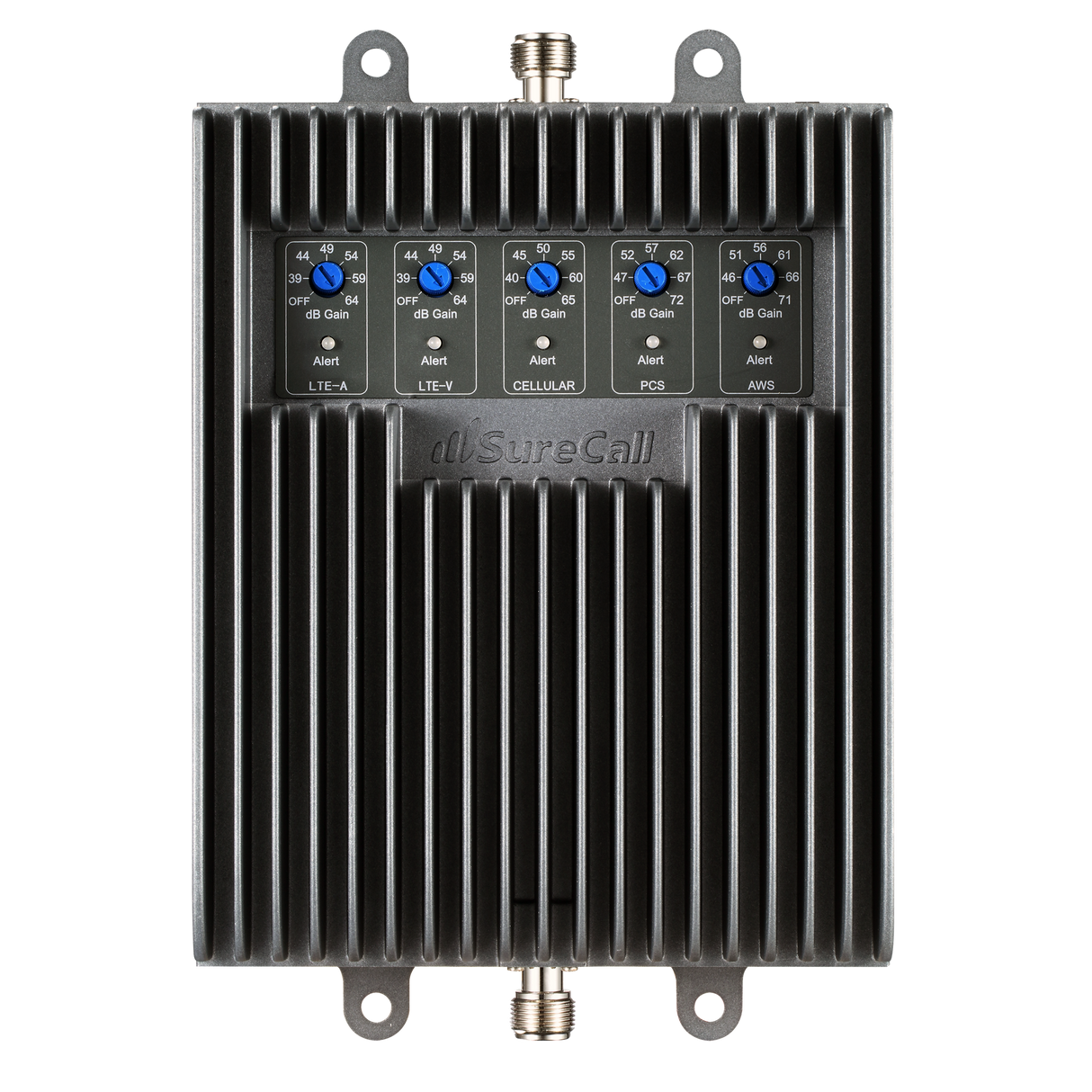

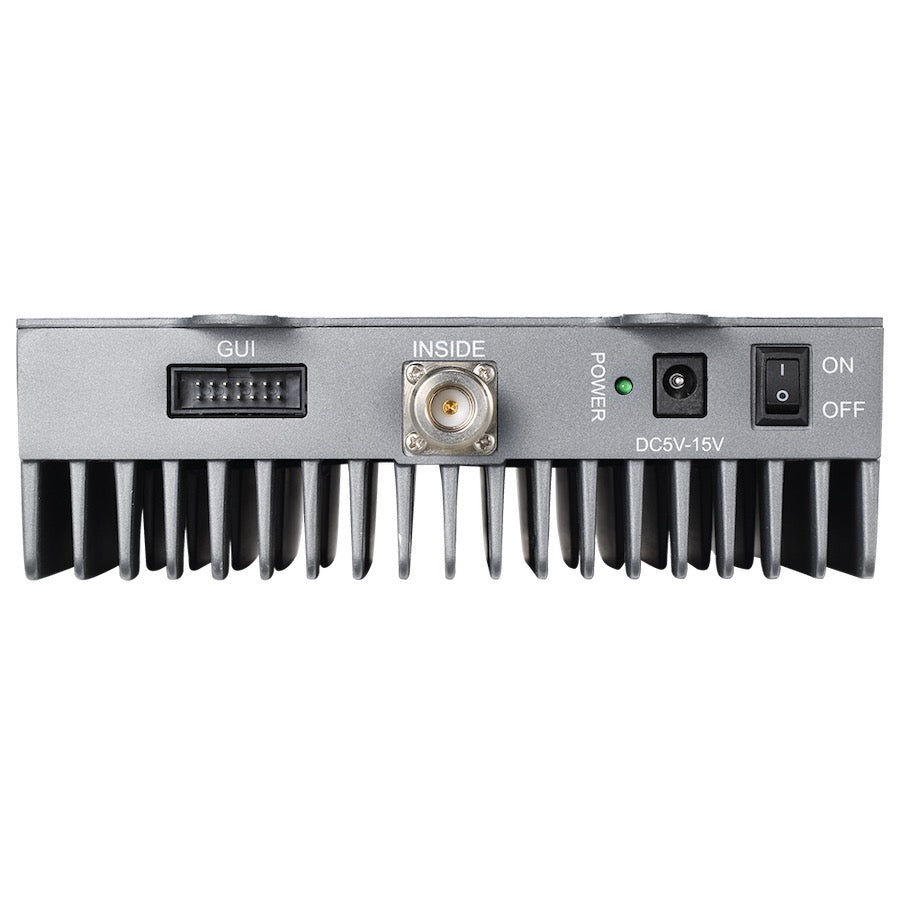

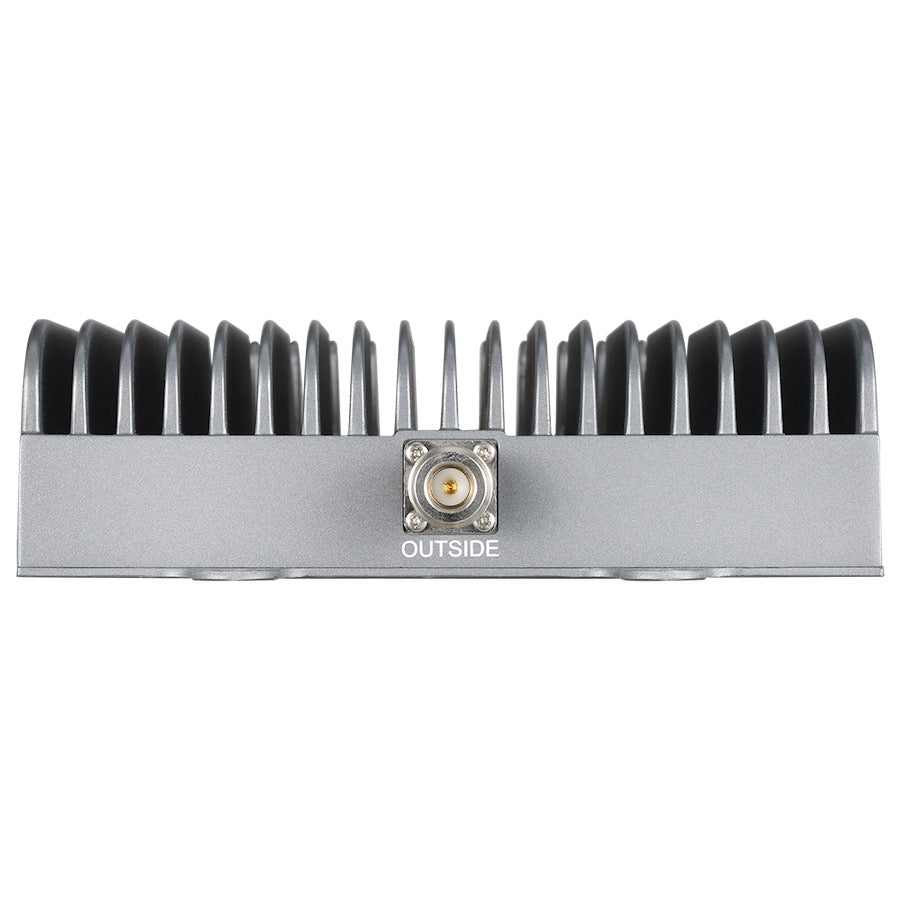

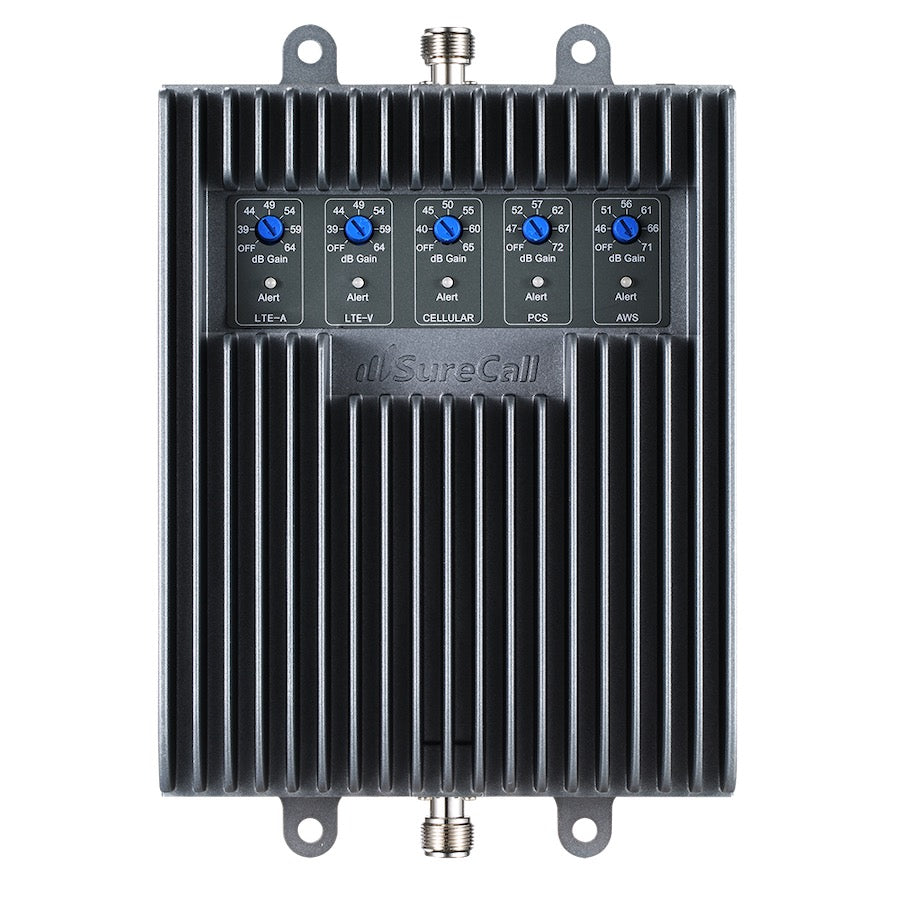

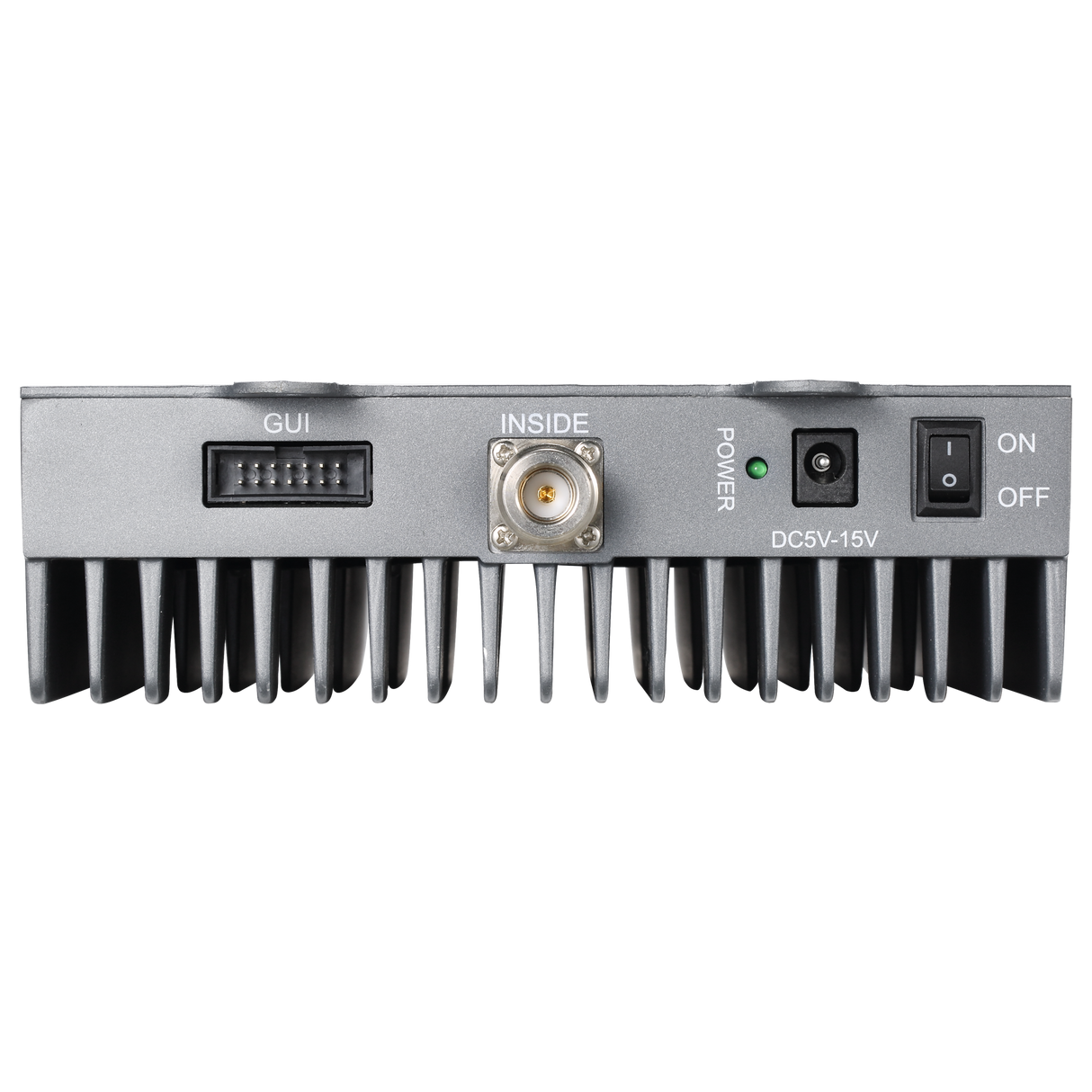

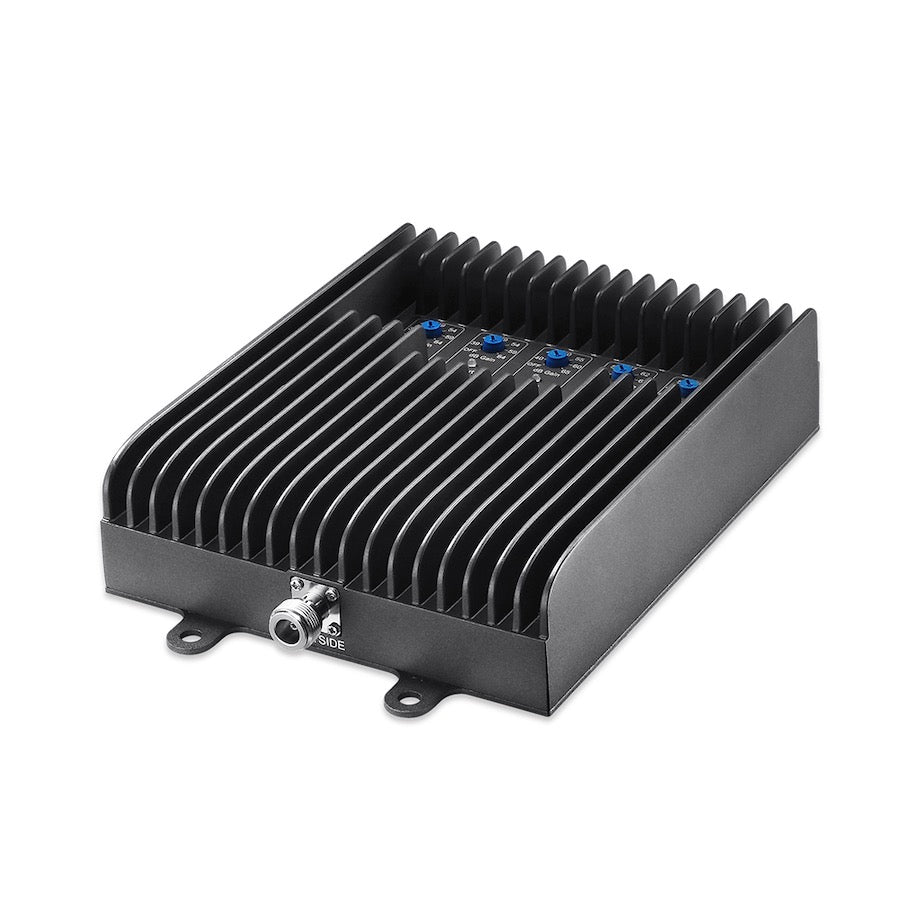

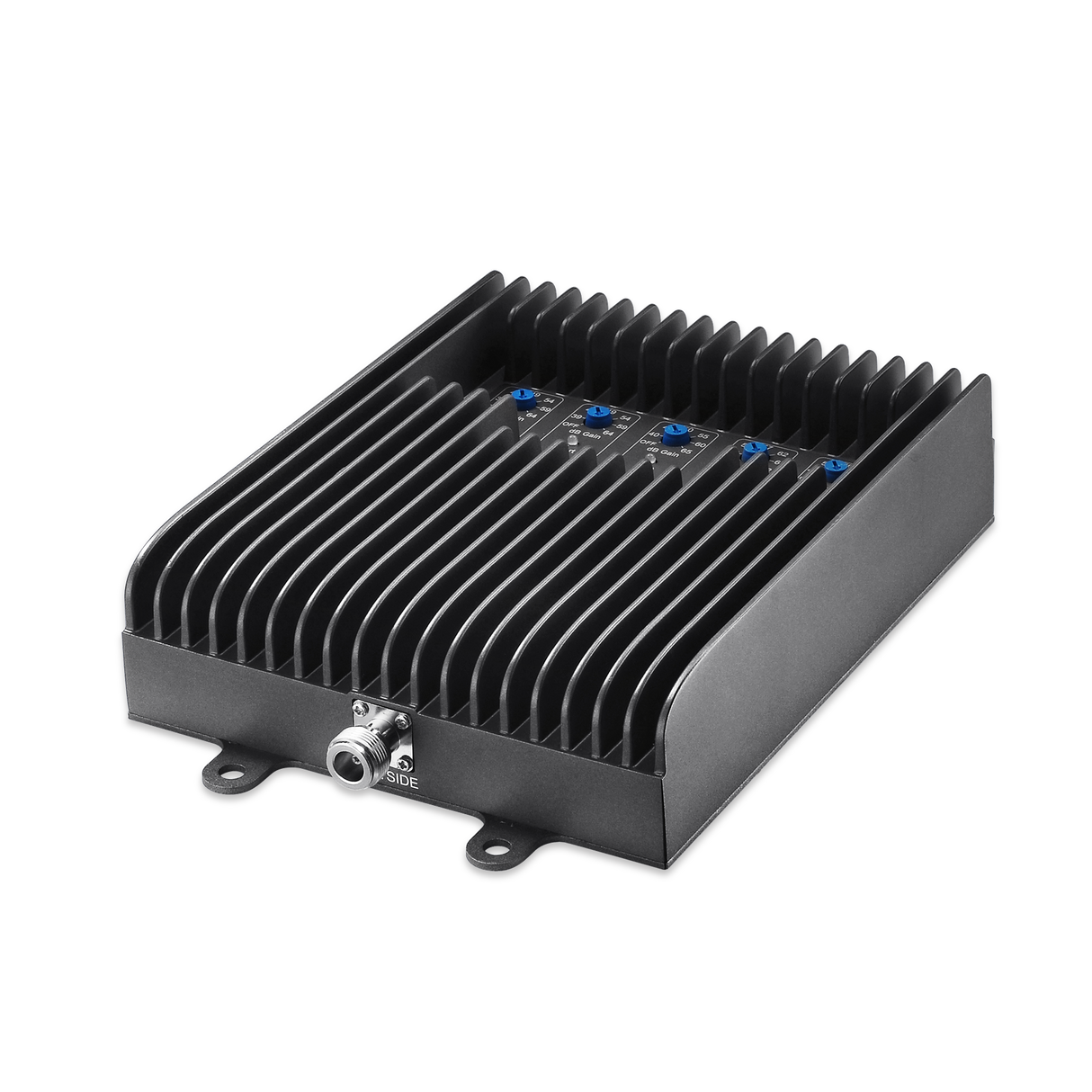

• Fusion5s Signal Amplifier
• Power Supply for Fusion5s Amplifier

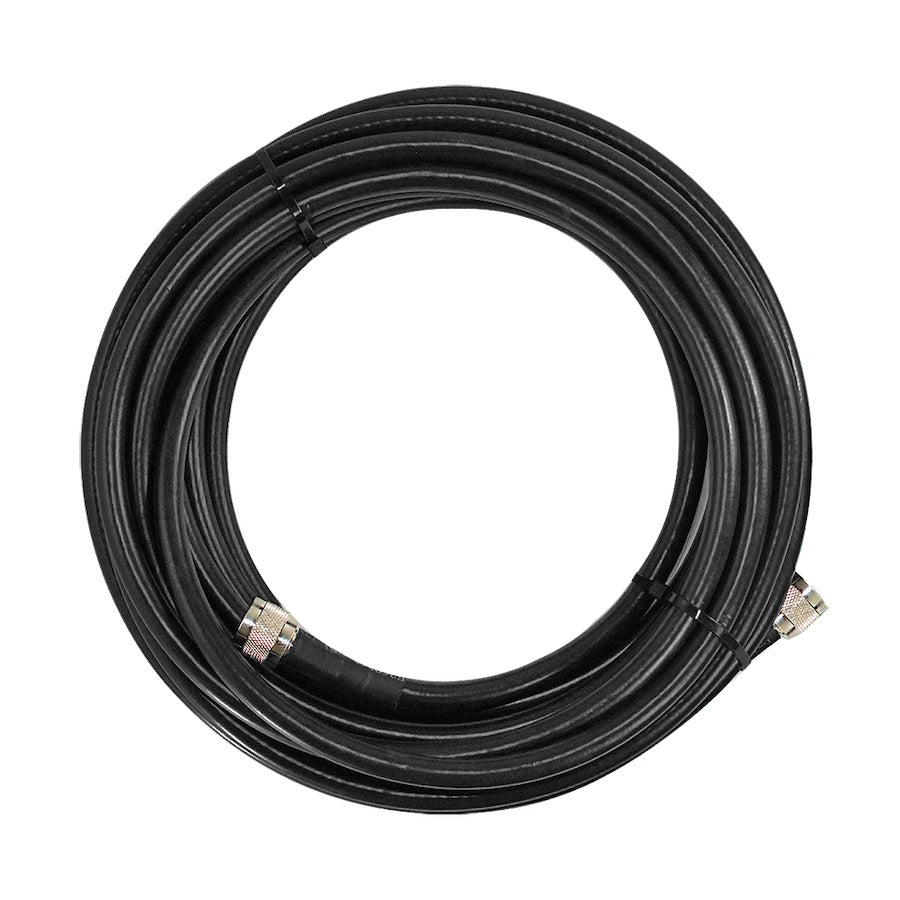

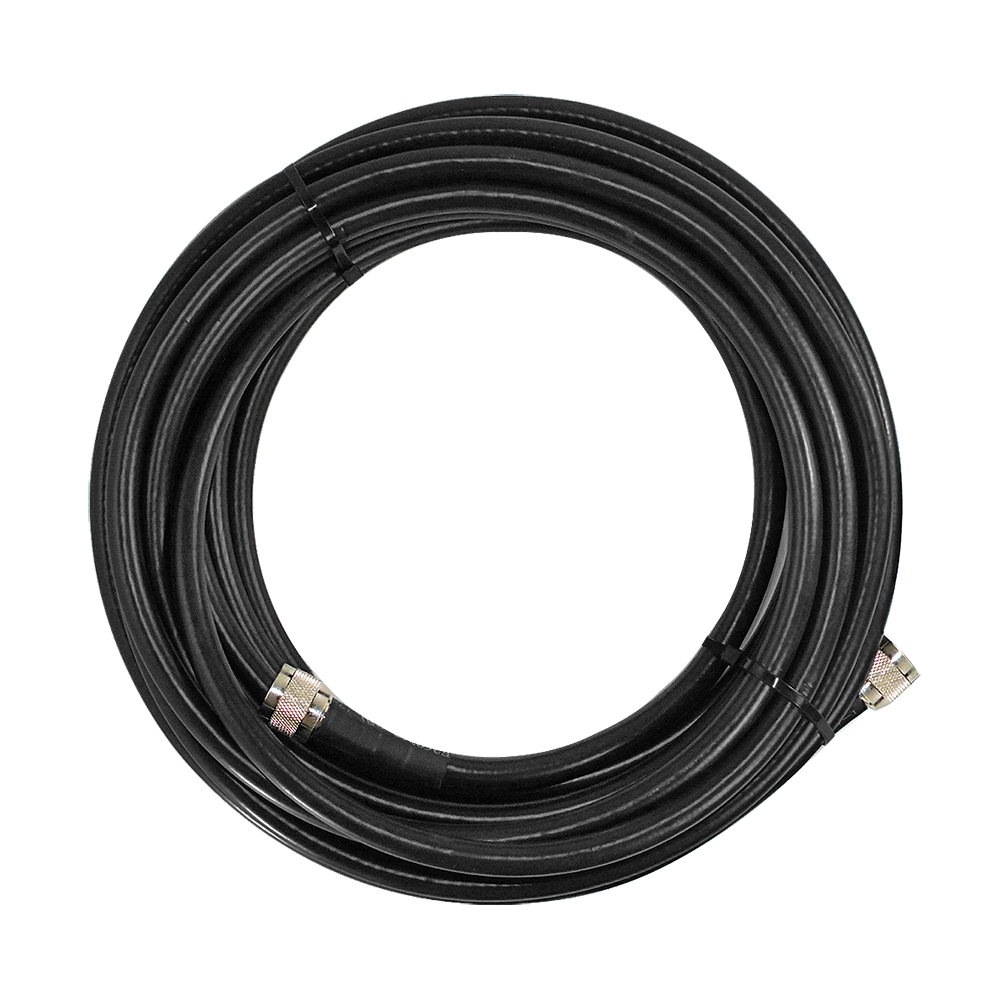

• 75 ft of 400 Series Cable
• 30 ft of 400 Series Cable
• Yagi Directional Outside Antenna (50 ohm) (outside antenna option)
• Omni Outside Antenna (50 ohm) (outside antenna option)
• Dome Inside Antenna (50 ohm) (inside antenna option)
• Panel Inside Antenna (50 ohm) (inside antenna option)
• Instruction Manual

Warranty

Your purchase is covered by our 60-day money-back guarantee, so you can try it risk-free, and our friendly, US-based technical support team is standing by to assist with anything you need. Your equipment is also covered by a 3-year manufacturer warranty, for extra peace of mind.

Estimated Inside Coverage

The strength of your existing outside signal, measured in the location where you plan to mount the outside antenna, has a direct impact on the amount of inside coverage you'll get from a signal booster. The table below shows how much coverage you may get depending on your outside signal strength:

Please Note: It is important to remember that there are many factors that impact the size of the inside coverage area, so actual results may vary from these estimates.

Additional Coverage

If you need more coverage than the SureCall Fusion5s will provide with just one inside antenna, then the SureCall Fusion5s with 2 Inside Antennas may be a better choice for you. It has a second inside antenna to provide more inside coverage with medium to strong outdoor signal. Please contact us if you have any questions or would like more information about either of these systems.

This signal booster has been designed to work with all cell phones and all carriers in the United States, Canada and Mexico, as well as carriers from some other countries in Latin America, South America and Australia.

Please Note: This signal booster will not work in most European, Asian, and African countries, as the frequencies used there are different than those boosted by this equipment.

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
