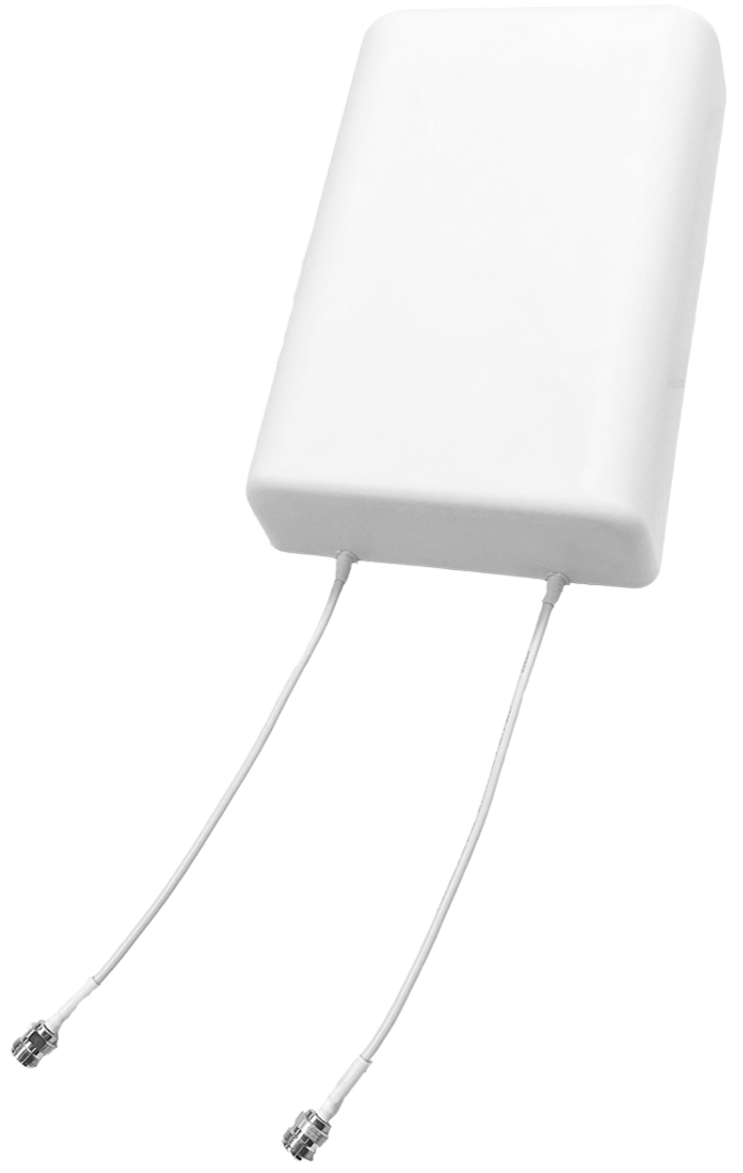

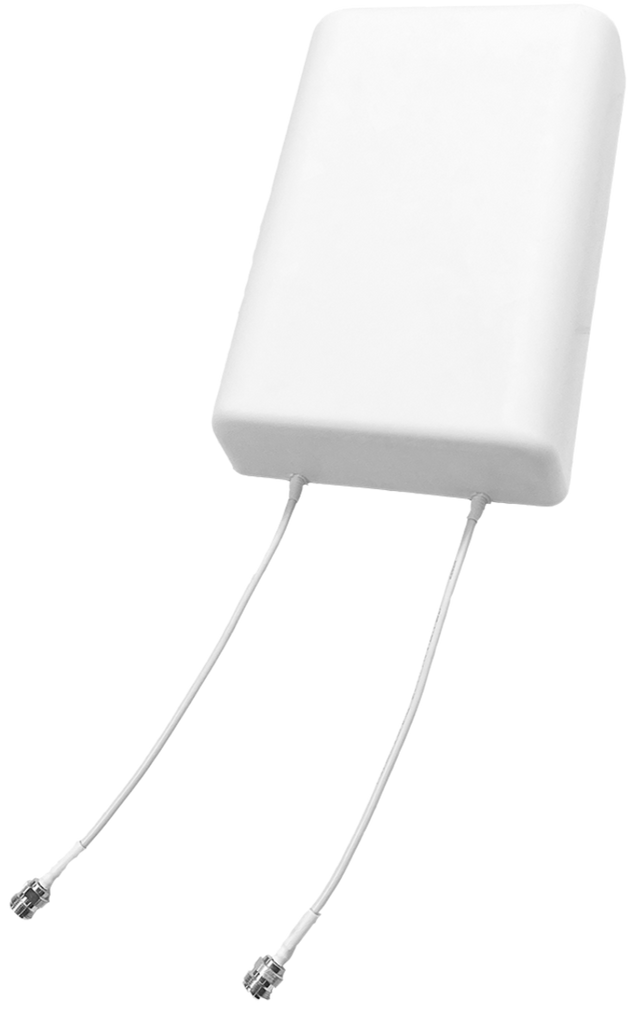

Indoor Panel Antenna MIMO C-Band UWB (SC-649CBM)

Product Highlights

• Covers ultra-wideband frequencies from 617 to 4000 MHz, including 5G C-band
• Directional panel design focuses signal into a defined coverage area
• MIMO support with ±45° polarization for better data performance
• 6 to 8 dBi gain, depending on frequency band
• N-Female connector (50 ohm) for use with SC-400 cable
• Mounting hardware included for wall installation
• Compact, low-profile ABS housing
• Operates in extreme temperatures from -22°F to 140°F

Top Benefits

• Delivers stronger indoor coverage in focused zones like hallways, large rooms, or open office areas
• Supports high-speed LTE and 5G data with MIMO signal paths
• Designed for long-term use in commercial or demanding environments
• Simple to mount and aim without requiring ongoing adjustments
• Wide frequency support makes it a flexible choice for multi-band booster systems

• SureCall Indoor Panel Antenna MIMO C-Band UWB (Part # SC-649CBM)
• Wall-mounting plate
• Mounting screws and anchors

Supported Devices: All phones, hotspots, and cellular data devices

Supported Networks: 4G LTE and 5G (on FCC-approved bands)

Frequencies Boosted: 617–698, 698–960, 1710–2700, and 3700–4000 MHz

Carriers: Verizon, AT&T, T-Mobile, UScellular, and most MVNOs that operate on their networks

Compatibility Note: This antenna is designed for use in North America. It may not work in other regions that use different frequency bands.

This antenna is built for indoor wall mounting and connects directly to your signal booster using low-loss SC-400 coax cable. It ships with a mounting plate and hardware to make setup straightforward, even for first-time installers.

Start by choosing a vertical surface where you want to focus the signal. The antenna performs best when it’s mounted at roughly the same height where most phone or device use happens — typically 4 to 6 feet off the floor in offices or living spaces.

Once you’ve selected a location:

1. Use the mounting plate to mark the screw positions
2. Secure the plate to the wall with the screws provided
3. Slide the antenna onto the plate until it locks into place
4. Connect the SC-400 cable with N-Male connectors to the antenna’s N-Female port
5. Route the cable to your booster’s indoor port

Installer tips:

• Always aim the panel antenna away from the outdoor antenna to avoid feedback
• The more separation (vertical or horizontal) between inside and outside antennas, the better
• Avoid coiling extra cable near the antenna or booster
• If you’re unsure about direction, test different orientations to find the strongest signal in your desired coverage zone

Once mounted and connected, no calibration or tuning is needed. The antenna works as part of your booster system to direct amplified signal exactly where you need it.
